技術參數
介質溫度：-20℃~+150℃
環境溫度：-20℃~+60℃
公稱壓力：1.6MPa
控制氣體：中性氣體，空氣
氣源壓力：0.3~0.8MPa
規格：DN15-DN65
閥體材質：CF8 CF8M
閥座材質：PTFE
閥桿材質：304/316L
密封圈材質：NBR
適用介質：水、油、中性氣體
介質溫度：-20℃~+150℃
環境溫度：-20℃~+60℃
公稱壓力：1.6MPa
控制氣體：中性氣體，空氣
氣源壓力：0.3~0.8MPa
規格：DN15-DN65
閥體材質：CF8 CF8M
閥座材質：PTFE
閥桿材質：304/316L
密封圈材質：NBR
適用介質：水、油、中性氣體
TECHNICAL PARAMETERS
Medium temperature:-20°C~+150°C
Ambient temperatur:-20°C~+60°C
Nominal pressure:1.6 MPa
Control gas, gas, air
Air pressure:0.3~0.8 MPa
Specification:DN15-DN65
The valve body material:CF8 CF8M
seat material:PTFE
Stem material:304/316L
Sealing ring material:NBR
Applicable medium: water vapor oil neutral gas
Medium temperature:-20°C~+150°C
Ambient temperatur:-20°C~+60°C
Nominal pressure:1.6 MPa
Control gas, gas, air
Air pressure:0.3~0.8 MPa
Specification:DN15-DN65
The valve body material:CF8 CF8M
seat material:PTFE
Stem material:304/316L
Sealing ring material:NBR
Applicable medium: water vapor oil neutral gas

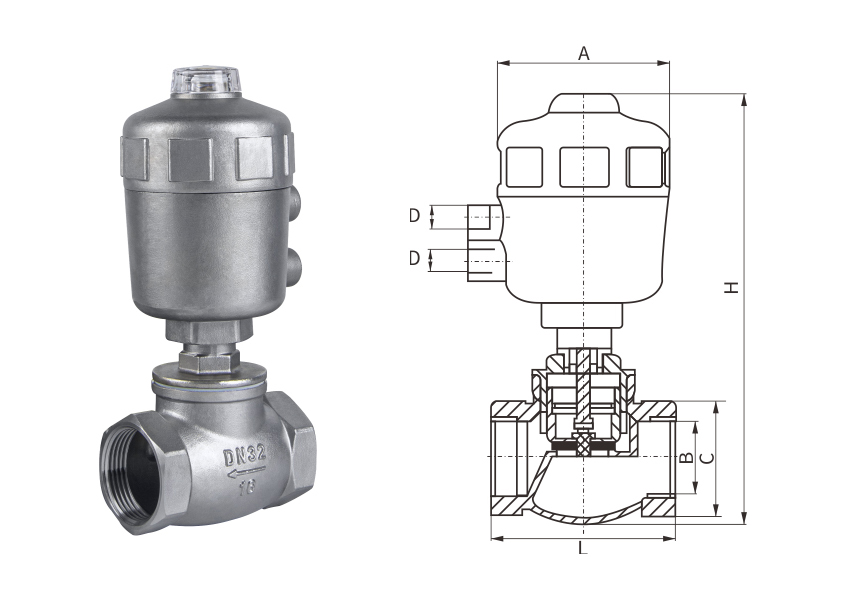

| 型號Model | A | L | C | B | D | H |
| DN15 | 64 | 55 | 27 | 22 | G1/4" | 162 |
| DN20 | 64 | 65 | 33 | 27 | G1/4" | 167 |
| DN25 | 64 | 71 | 42 | 34 | G1/4" | 180 |
| DN32 | 80 | 85 | 49 | 42 | G1/4" | 210 |
| DN40 | 80 | 98 | 57 | 48 | G1/4" | 220 |
| DN50 | 80 | 113 | 68 | 60 | G1/4" | 235 |
| DN65 | 101 | 133 | 87 | 76 | G1/4" | 265 |
